Newly arranged keyboard watched by the world, Muto Chromatic Keyboard

クロマチックキーボード

Halftone arrangement and
whole-tone arrangement keyboard

It is not only Muto Notation Method (= Chromatic Notation) that was developed by Muto Music Method. Totally new style (halftone arrangement and whole-tone arrangement keys) of keyboard, featured in Rapian, Wholetone and Chromatone, is the attractive product that represents Muto Chromatic Keyboards. This keyboard has special structures that make music closer to us.

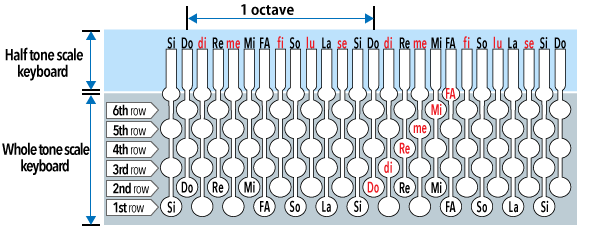

The mechanism of key arrangements of Chromatic Keyboard

クロマトーンの鍵盤配列の仕組み
* ‘Wholetone Revolution’ that is whole-tone scale keyboard has 6 rows.
CHROMATONE CT-312 has 5 rows.

In Muto Music Method, Keyboard and Muto Notation (=Chromatic Notation) match perfectly and link with each other. Therefore it is very easy to play.

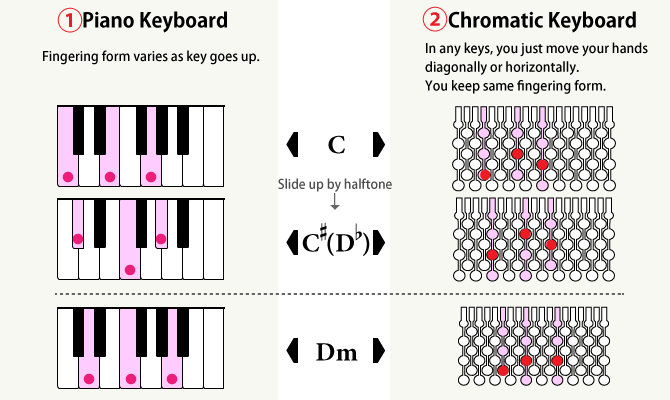

At first, let’s take a look at keyboard. In Muto Music Method, you can accompany most of the songs just by memorizing 2 types of chords. Here we verify how Chromatic System (= Muto Music Method) is easy and epoch-making by using the example of 3 chords, ‘C’, ‘C# (or D♭)’ <major chords> and ‘Dm’ <minor chords>. Let’s see the diagram below.

ピアノとクロマトーンの違い
As ‘Dm’ is minor chord, it is different from major chord like ‘C’, ‘C# or D♭’. But fingering form of ‘Dm’ on the piano keyboard is like sliding the C chord form, although the types of chord are different.

1) Piano Keyboard

If you try to master <major chords> and <minor chords> with piano, you need to learn all the different way of fingering in 24 different keys (major 12, minor 12). Haven’t you given it up learning it ?

2) Chromatic Keyboard

On the other hand, with Chromatone, you just slide your hands after you learn only one <major chord>. It is same with <minor chord>. If you master one form, you just slide hands by keeping the form. You can easily play the keyboard !

No black key !

To be able to transpose is the most important factor in order to play music freely. But as piano requires players to play at all the different positions, we had to learn how to play all 12 keys to master transposition. Isn’t it possible to create piano that enables us transpose freely and easily ? That was the motive to start developing Muto Chromatic Keyboard.

The reason why piano makes it difficult to transpose is existence of black keys. Therefore we invented newly arranged keyboard <<Muto Chromatic Keyboard>>, that has no difference in black and white keys. Muto Chromatic Keyboard (Wholetone) has 6 rows of unified round shaped whole tone keys and comb-shaped half tone keys are line-up above them. When you move horizontally, you play whole tone and when you move diagonally, you play halftones, as whole tone keys are shifted by one note at following row.

At a glance, Muto Chromatic Keyboard looks like Keyboard of personal computers and it may not look like musical instrument. This interface is developed based on human engineering and considered in the details to enable us to play without difficulties. For example, in the case of playing piano, we have to stretch our fingers or move hands to cover 1 octave. Depending on the tunes, the fingers cannot reach the notes. Physical ability influences on the performance a lot. At Muto Chromatic Keyboard, we improved the shape of keys for us to be able to play with minimum strength. This enables us to play unrestrictedly without difficulty, free from the problems of heavy keys or narrow key intervals that we experience with piano.

"Rapian", the base of Muto Chromatic Keyboard, was completed in the late 1980’s. This obtained the grand prix at World Invention EXPO held in 1987. This instrument was greatly recognized as an epoch-making instrument and a lot of people inquired us and media came to us from all over the world. As it was a handmade trial piece, and the information was not transmitted well as internet was not available like today, we prepared for the development of next generation model, while keeping further improvement of the first generation.

Then after all the improvements, finally we released "Wholetone" in 2001, featuring ‘whole tone key arrangement + halftone key arrangement’ system. Wholetone is developed for the professionals. 88 keys that is same as grand piano are equipped in the normal width of keyboard (61 keys usually). Moreover, we launched "Chromatone" which is all-in one type model in September 2007, to the general public.

Difficult to transpose with piano.

‘Oh, I wish if there were no black keys…’

Anyone who wants to live with music must have touched piano at least once. In the classical music society, piano was worshipped as the greatest among all the different instruments. This was not because of its function, but because of its long history of 600 years. But almost nobody knows the fact that various improvements have been tried in the long history. Why were there people who tried to improve piano ? Because piano is incomplete instrument with a lot of problems.

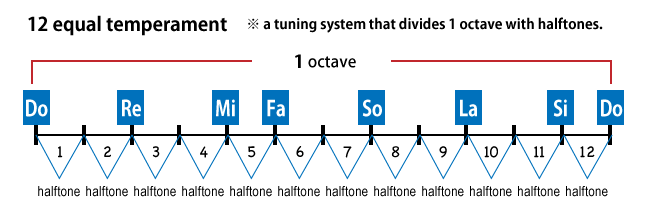

The biggest problem with piano is that ‘it differentiates black and white’. Piano is the instrument created based on the tuning system called 12 equal temperament. It divides 1 octave into 12 equal parts, and make the distance (interval) between the notes next to each other as halftone equally. (see below diagram)

12平均律

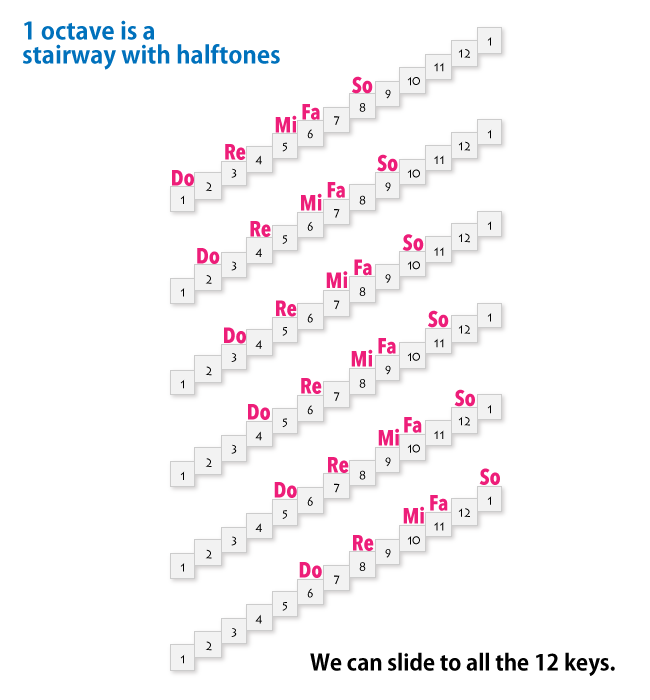

In other words, there are 12 steps of stairways that go up by halftone in 1 octave.
This 12 equal temperament enabled us to play in the 12 different ways of the same song or modulate in the tunes. It was the epoch-making method for the musicians and composers to broaden the possibility of music. (see below diagram).

1オクターブは半音階の階段

However …
Piano is not suitable to transposition and modulation which gives music freedom.

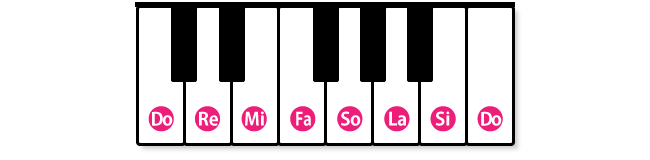

It is easy to play DO,RE,MI,FA,SO,LA,SI with white keys on piano in C major.
(see below diagram)

ピアノ鍵盤

But it suddenly gets complicated when we try to play in the different keys.

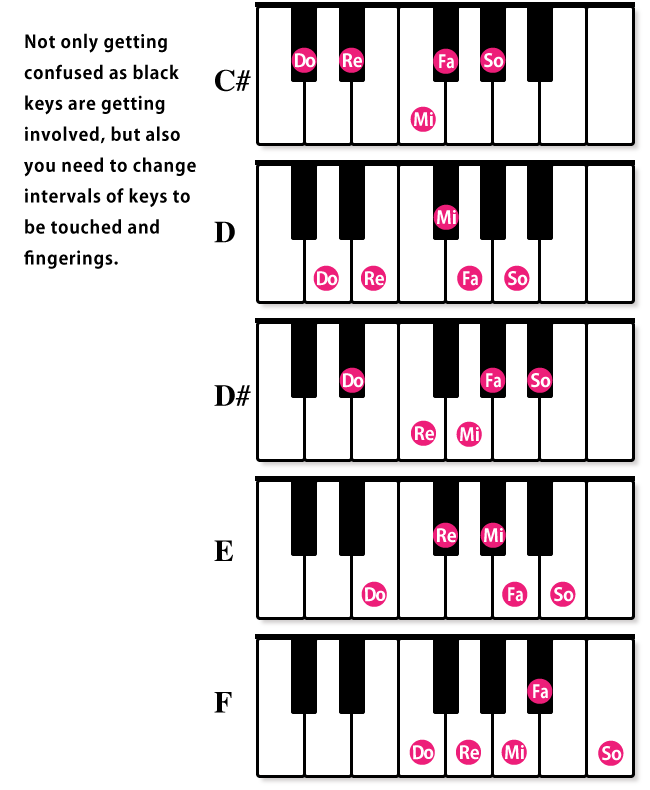

When the key changes, the black keys (keyboard) are mixed up irregularly. This confuses us as we cannot know the distance between the notes. We need to play in differently according to the keys. We have to learn 12 ways of playing to master piano. This is why we suddenly feel piano is difficult when black keys are involved in playing. A lot of people must have wished if black keys had not existed. (see below diagram)

ピアノ鍵盤

After all, piano is a fixed DO musical instrument so that we can play C major easily and it is not a versatile instrument to be able to play all 12 keys freely. A lot of musicians had been required to train themselves very hard for long time to overcome this ‘difficulty to transpose.’ And then people started looking at pianists enviously that ‘they are so great as they could master piano after great amount of training !’ And it caused misunderstandings like ‘music is difficult’ accordingly.

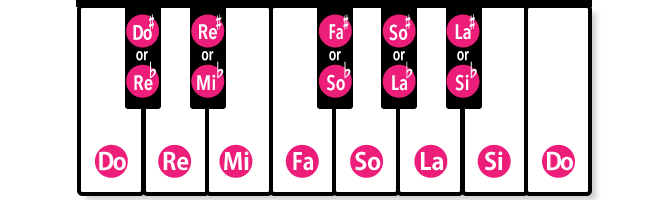

In 1 octave, there are 12 notes such as Do, Do# (or Re♭), Re, Re# (or Mi♭), Mi, Fa, Fa# (or So♭), La, La# (or Si♭), Si. For example, don’t you have an impression that ‘Do# is an attendant note to Do’ ? (see below diagram) Do# or Re♭, Re# or Mi♭, Fa# or So♭, So# or La♭, La# or Si♭

黒鍵の呼び名

When you look at keyboard of Piano, you may feel that black keys do not have their own comfortable places. Originally, any keys have superiority or inferiority with each other among 12 notes and they are all independent notes. But as there are white keys and black keys, it is hard to grasp the distance between the notes at a glance, and you get confused all the time (see the diagram below).

矛盾を生むピアノ黒鍵
a-b-c are positioned in the equal interval but they look differently on the piano keyboard.

As you experience this repeatedly, it creates the consciousness such as ‘the tunes using black keys are difficult to play’ and ‘piano is difficult’ in your mind.
